Release Info
| Catalog ID | NES-DR-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | September 1993 |
| Publisher | Sony (CSG) Imagesoft |
| Developer | Probe |
| Players | 1 |
| Peripherals | NES Controller |

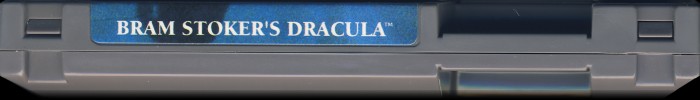

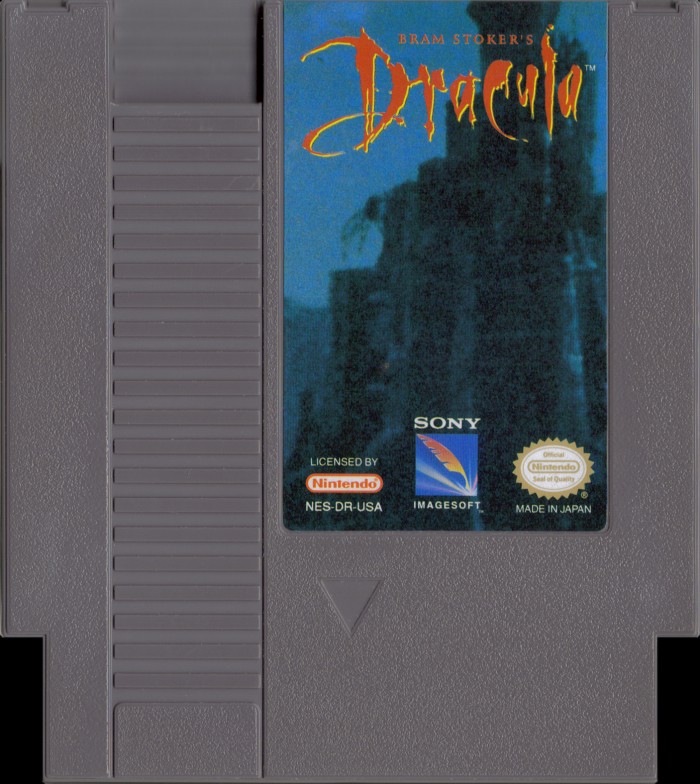

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-DR-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 07 |

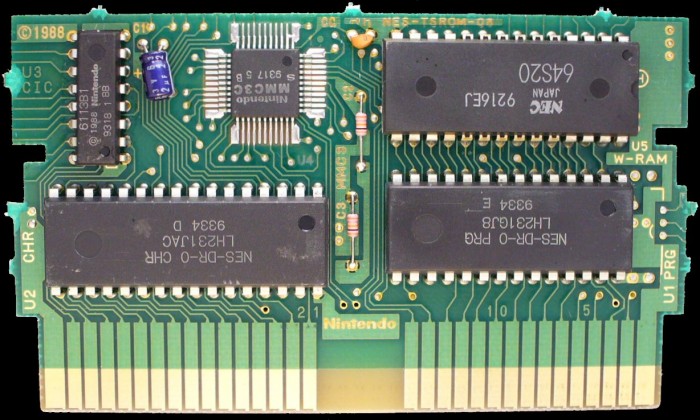

PCB Properties
| Name | NES-TSROM-08 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9334 |
| Est First Run | August 1993 |
| PCB Class | NES-TSROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC3C |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-DR-0 PRG | 128 KB | 042C6F99 | 1 |
| CHR0 | NES-DR-0 CHR | 128 KB | 692B357D | 3 |
| N/A | ROMs Combined | 256 KB | DFA111F1 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G J8 | Mask ROM 128 KB | DIP-28 | 9334 E | 9334 | |
| U2 CHR | Sharp | LH231J AC | Mask ROM 128 KB | DIP-32 | 9334 D | 9334 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9318 1 BB | 9318 | |
| U4 MMC3 | Sharp | MMC3C | Nintendo MMC3 | TQFP-44 | 9317 5 B | 9317 | |
| U5 W-RAM | NEC | 64S20 | SRAM 8 KB | DIP-28 | 9216 EJ | 9216 |
