Release Info
| Catalog ID | CDR-OM-81023 |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1991 |
| Publisher | Color Dreams |
| Developer | Color Dreams |
| Players | 1 |
| Peripherals | NES Controller |

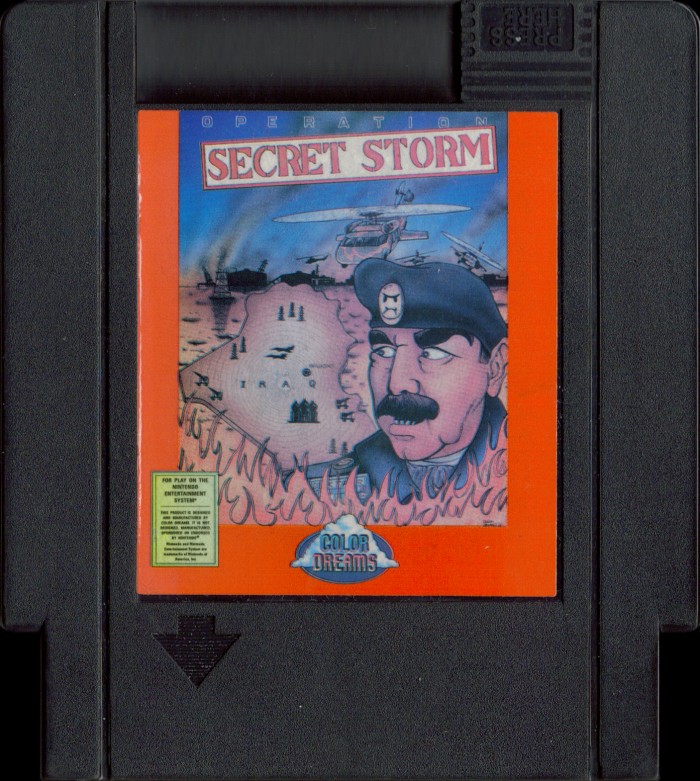

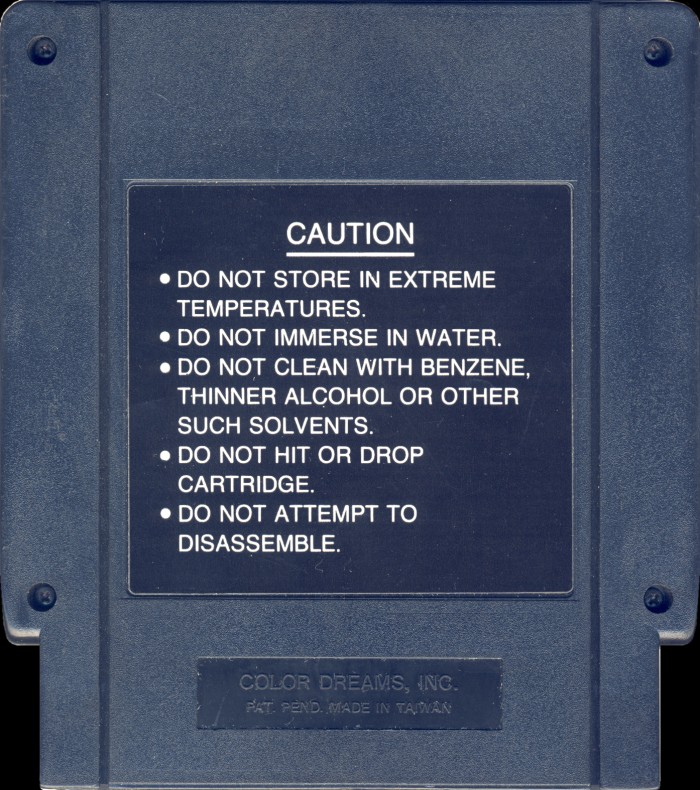

Cart Properties
| Cart Producer | Color Dreams |
|---|---|
| Color | Black |
| Form Factor | Inset Grip |
| Embossed Text | Color Dreams, Inc. Pat. Pend. Made in Taiwan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

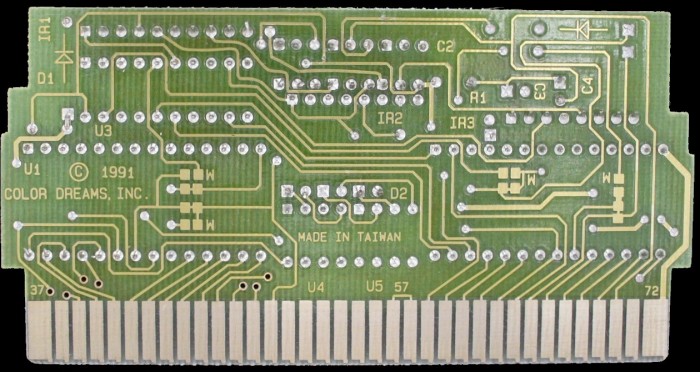

PCB Properties
| Name | UNK-COLORDREAMS-REVC |
|---|---|
| PCB Producer | Color Dreams |
| Manufacturer | BTC |
| Mfg Range | 9152 |
| Est First Run | December 1991 |
| PCB Class | COLORDREAMS-74*377 |
| iNES Mapper | 11 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 7660 |
| Hardware | 74xx377 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SECRET STORM 512K PRG | 64 KB | 32490787 | 1 |
| CHR0 | SECRET STORM 512K VID | 64 KB | 3561E26C | 1 |
| N/A | ROMs Combined | 128 KB | EA113128 | 1 |

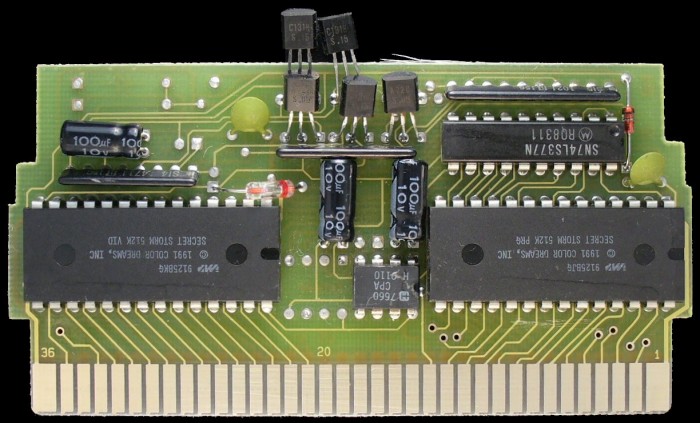

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | IMP | IM23512 | Mask ROM 64 KB | DIP-28 | 9152 BJG | 9152 | |
| U2 | IMP | IM23512 | Mask ROM 64 KB | DIP-28 | 9152 BKG | 9152 | |
| U3 | Motorola | SN74LS377N | 74-377 Series | DIP-20 | 8311 RQ | 8311 | |
| U4 | Harris | 7660CPA | 7660 DC Charge Pump | DIP-8 | 9110 H | 9110 |
