Release Info
| Catalog ID | AGCI-DR |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1990 |
| Publisher | AGCI |
| Developer | Exidy |
| Players | 1 |
| Peripherals | NES Controller |
Cart Properties
| Cart Producer | AGCI |
|---|---|
| Color | Grey |
| Form Factor | Deep Grip |
| Embossed Text | AGCI Patent Pending |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

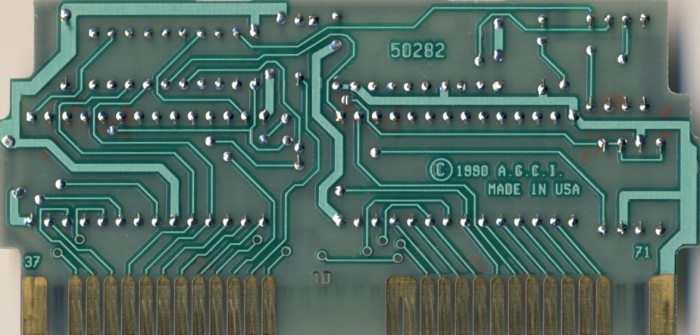

PCB Properties
| Name | 50282 |
|---|---|
| PCB Producer | AGCI |
| Manufacturer | Key Tronic |
| Mfg Range | 9037 |
| Est First Run | September 1990 |
| PCB Class | AGCI-50282 |
| iNES Mapper | 144 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | CIC Stun |
| Hardware | 74xx377 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | DRACEPRG | 64 KB | 7ED91F80 | 1 |
| CHR0 | DRACECHR | 64 KB | 8084BB4F | 1 |
| N/A | ROMs Combined | 128 KB | 5CAA3E61 | 1 |

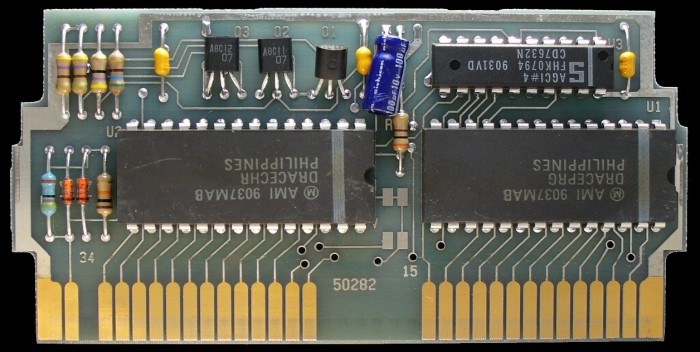

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | AMI | AM23512 | Mask ROM 64 KB | DIP-28 | 9037 MAB | 9037 | |
| U2 | AMI | AM23512 | Mask ROM 64 KB | DIP-28 | 9037 MAB | 9037 | |
| U3 | Signetics | AGCI#4 | 74-377 Series | DIP-20 | 9031 VD CD7632N | 9031 | FHK0794 |
