Release Info
| Catalog ID | NES-XJ-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | December 1990 |
| Publisher | Koei |
| Developer | Koei |
| Players | 5 |
| Peripherals | NES Controller |

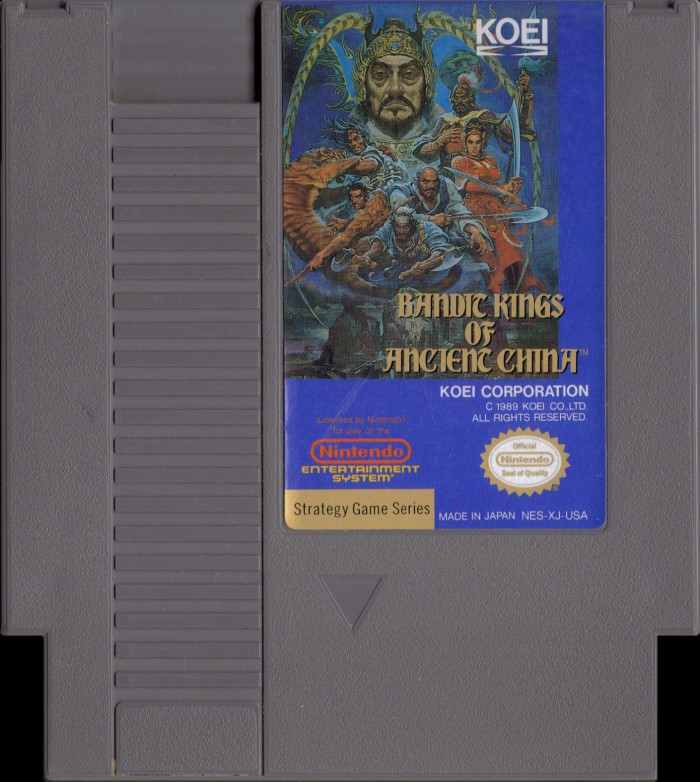

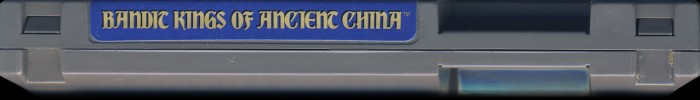

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-XJ-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 28 |

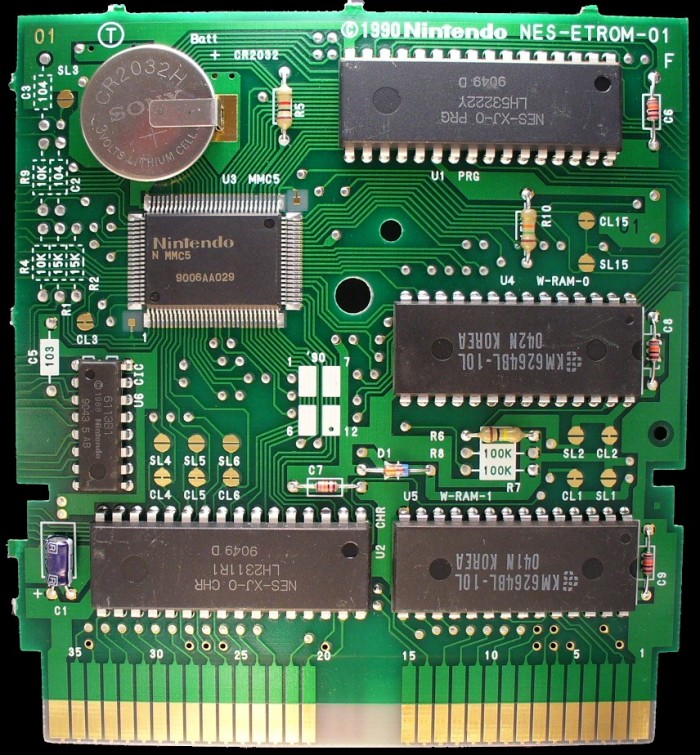

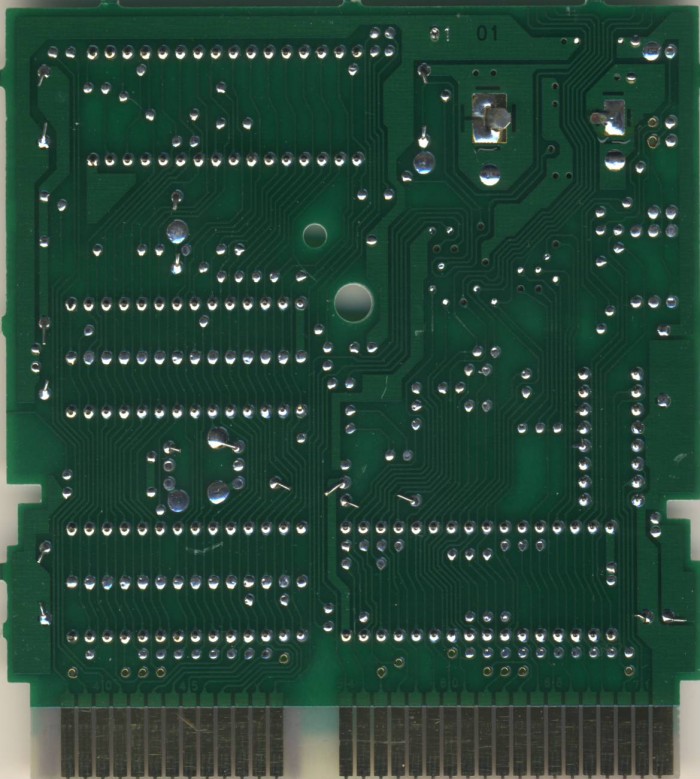

PCB Properties
| Name | NES-ETROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9049 |
| Est First Run | December 1990 |
| PCB Class | NES-ETROM |
| iNES Mapper | 5 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 16 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC5 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-XJ-0 PRG | 256 KB | 2B548D75 | 2 |
| CHR0 | NES-XJ-0 CHR | 128 KB | 26D34BF6 | 2 |
| N/A | ROMs Combined | 384 KB | 15FE6D0F | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH5322 2Y | Mask ROM 256 KB | DIP-32 | 9049 D | 9049 | |
| U2 CHR | Sharp | LH2311 R1 | Mask ROM 128 KB | DIP-32 | 9049 D | 9049 | |
| U3 MMC5 | NEC | MMC5 | Nintendo MMC5 | PQFP-100 | 9006 AA029 | 9006 | |
| U4 W-RAM-0 | Samsung | KM6264BL-10L | SRAM 8 KB | DIP-28 | 042 N | 9042 | |
| U5 W-RAM-1 | Samsung | KM6264BL-10L | SRAM 8 KB | DIP-28 | 041 N | 9041 | |
| U6 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9043 5 AB | 9043 |
