Release Info
| Catalog ID | NES-LS-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | March 1990 |
| Publisher | HAL Laboratory |
| Developer | HAL Laboratory |
| Players | 4 |
| Peripherals | NES Controller |

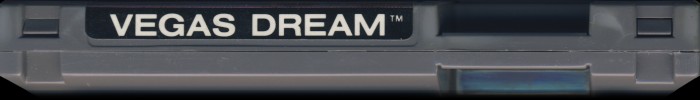

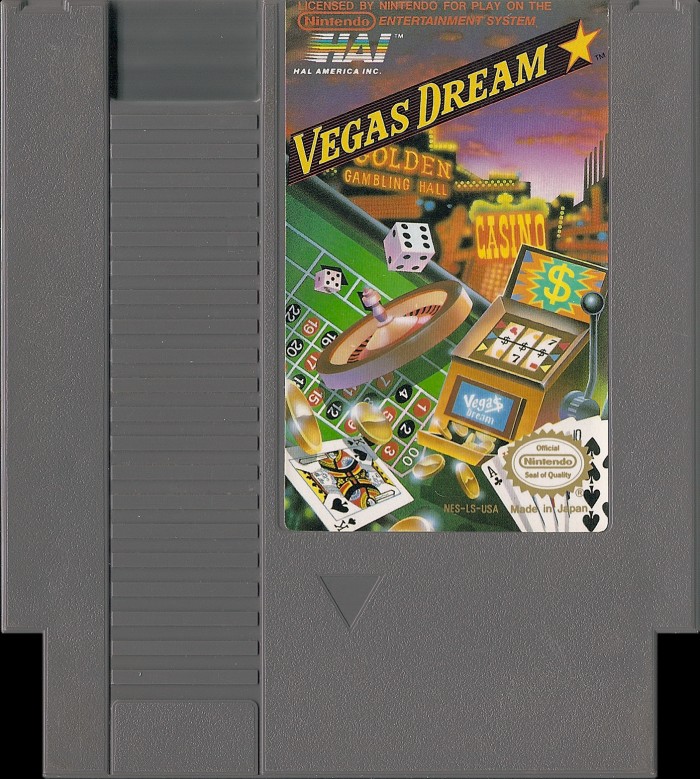

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-LS-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 12 |

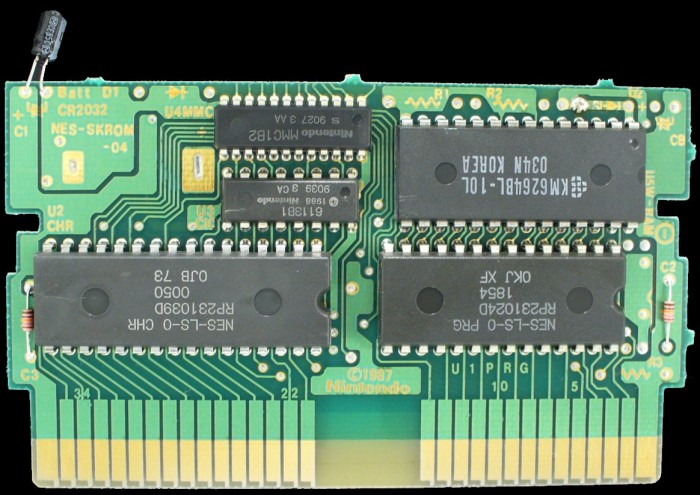

PCB Properties
| Name | NES-SKROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9041 |
| Est First Run | October 1990 |
| PCB Class | NES-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-LS-0 PRG | 128 KB | 86D67A97 | 1 |
| CHR0 | NES-LS-0 CHR | 128 KB | 617F9A24 | 1 |
| N/A | ROMs Combined | 256 KB | C973699D | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231024D 1854 | Mask ROM 128 KB | DIP-28 | 0KJ XF | 9041 | |
| U2 CHR | Ricoh | RP231039D 0050 | Mask ROM 128 KB | DIP-32 | 0JB 73 | 9035 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9039 3 CA | 9039 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9027 3 AA | 9027 | |
| U5 W-RAM | Samsung | KM6264BL-10L | SRAM 8 KB | DIP-28 | 034 N | 9034 |
