Release Info
| Catalog ID | NES-CG-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | June 1989 |
| Publisher | Milton Bradley |
| Developer | Epyx |
| Players | 8 |
| Peripherals | NES Controller |

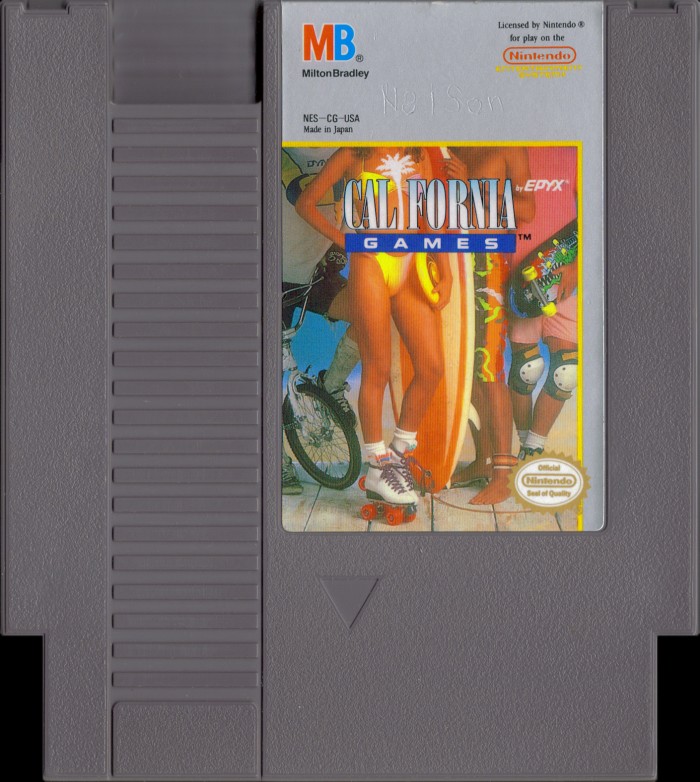

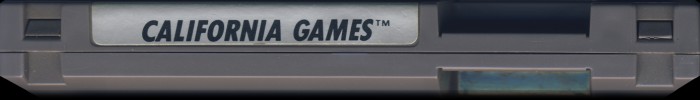

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-CG-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 28 |
PCB Properties
| Name | NES-UNROM-09 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8912 - 9027 (2) |
| Est First Run | March 1989 |
| PCB Class | NES-UNROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-CG-0 PRG | 128 KB | 2F66E302 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231024D 1809 | Mask ROM 128 KB | DIP-28 | 0FJ X0 | 9023 | |
| U2 CHR RAM | Sony | CXK5864BP-12L | SRAM 8 KB | DIP-28 | 05 76E | 9018 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9027 5 CA | 9027 | |
| U4 HC161 | Motorola | MC74HC161A | 74-161 Series | DIP-16 | 9005 N A | 9005 | |
| U5 HC32 | Phillips | PC74HC32P | 74-32 Series | DIP-14 | 9022 Hnn | 9022 | 668550T |
