Release Info
| Catalog ID | NES-KI-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | July 1987 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | NES Controller |

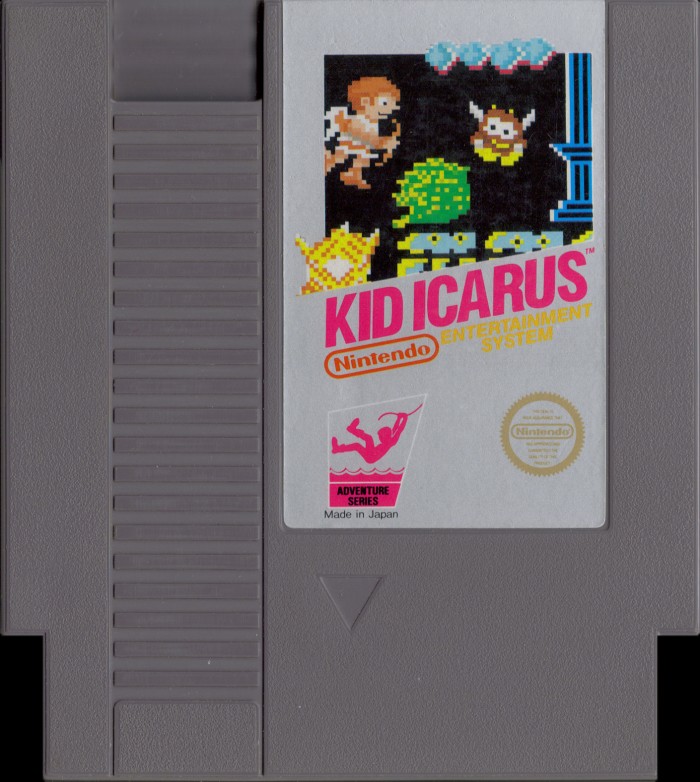

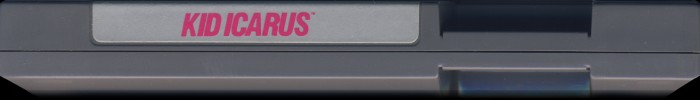

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 5-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 01 |
PCB Properties
| Name | NES-SNROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8728 - 8824 (4) |
| Est First Run | July 1987 |
| PCB Class | NES-SNROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | 6113 |
| Hardware | MMC1 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-KI-0 PRG | 128 KB | D9F0749F | 7 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Ricoh | RP231024D 0216 | Mask ROM 128 KB | DIP-28 | 7K1 B2 | 8741 | |
| CHR | NEC | 64S20 | SRAM 8 KB | DIP-28 | 8735 MX | 8735 | |
| Sharp | 6113 | Nintendo CIC | DIP-16 | 8742 A | 8742 | ||
| Sharp | MMC1 | Nintendo MMC1 | DIP-24 | 8743 A | 8743 | ||
| NEC | 64S20 | SRAM 8 KB | DIP-28 | 8735 MX | 8735 |
