Release Info
| Catalog ID | NES-HY-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | March 1988 |
| Publisher | Nintendo |
| Developer | Pax Softnica |
| Players | 2 |
| Peripherals | NES Controller |

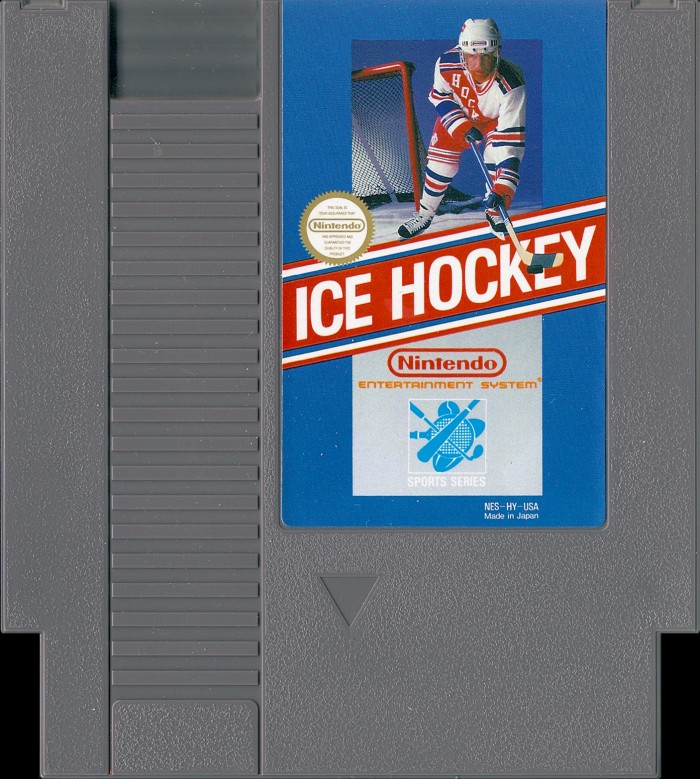

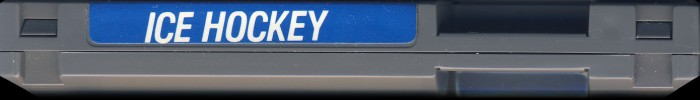

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-HY-USA |
| Seal of Quality | Round |
| MfgString Present | Yes |
| 2-digit Code | 00 |

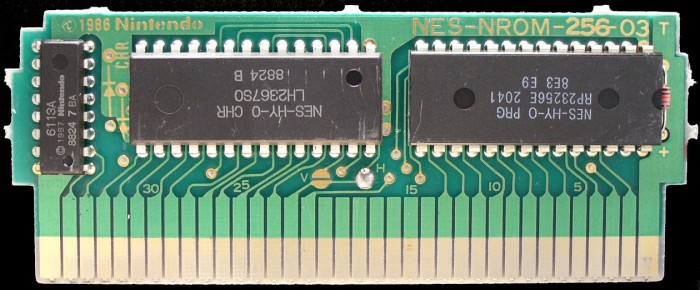

PCB Properties
| Name | NES-NROM-256-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8804 - 8824 (4) |
| Est First Run | January 1988 |
| PCB Class | NES-NROM-256 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113A |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-HY-0 PRG | 32 KB | 82DFF13D | 6 |
| CHR0 | NES-HY-0 CHR | 8 KB | F10FC90A | 10 |
| N/A | ROMs Combined | 40 KB | AE64CA77 | 6 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Ricoh | RP23256E 2041 | Mask ROM 32 KB | DIP-28 | 8E3 E9 | 8820 | |
| CHR | Sharp | LH2367 S0 | Mask ROM 8 KB | DIP-28 | 8824 B | 8824 | |
| CIC | Sharp | 6113A | Nintendo CIC | DIP-16 | 8824 7 BA | 8824 |
