Release Info
| Catalog ID | NES-DU-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | July 1990 |
| Publisher | Data East |
| Developer | Data East |
| Players | 2 |
| Peripherals | NES Controller |

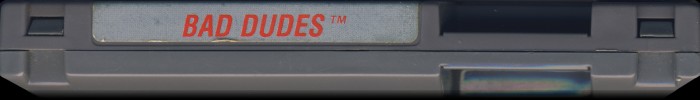

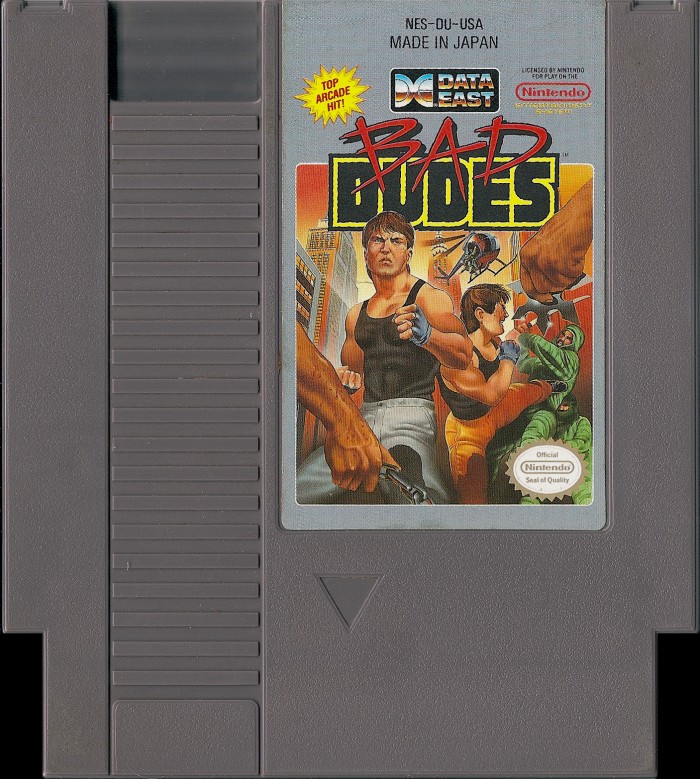

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-DU-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 28 |

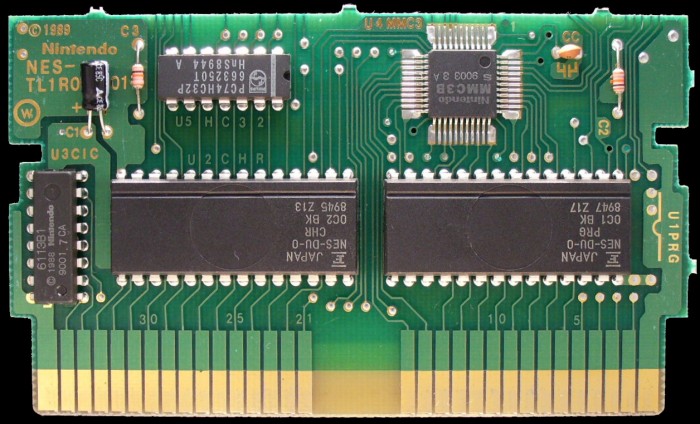

PCB Properties
| Name | NES-TL1ROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8924 - 9004 (3) |
| Est First Run | June 1989 |
| PCB Class | NES-TL1ROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx32, MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-DU-0 PRG | 128 KB | DE182C88 | 6 |
| CHR0 | NES-DU-0 CHR | 128 KB | BA770627 | 8 |
| N/A | ROMs Combined | 256 KB | 161D717B | 6 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Fujitsu | MB831002 | Mask ROM 128 KB | DIP-28 | 8947 Z17 | 8947 | |
| U2 CHR | Fujitsu | MB831002 | Mask ROM 128 KB | DIP-28 | 8945 Z13 | 8945 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9001 7 CA | 9001 | |
| U4 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9003 3 A | 9003 | |
| U5 HC32 | Phillips | PC74HC32P | 74-32 Series | DIP-14 | 8944 HnS | 8944 | 663250T |
