Release Info
| Catalog ID | HES-MG |
|---|---|
| Region | Australia (PAL) |
| Class | Unlicensed » Multi-cart |
| Release Date | November 8, 1992 |
| Publisher | HES |
| Developer | AVE |
| Players | 2 |
| Peripherals | NES Controller |

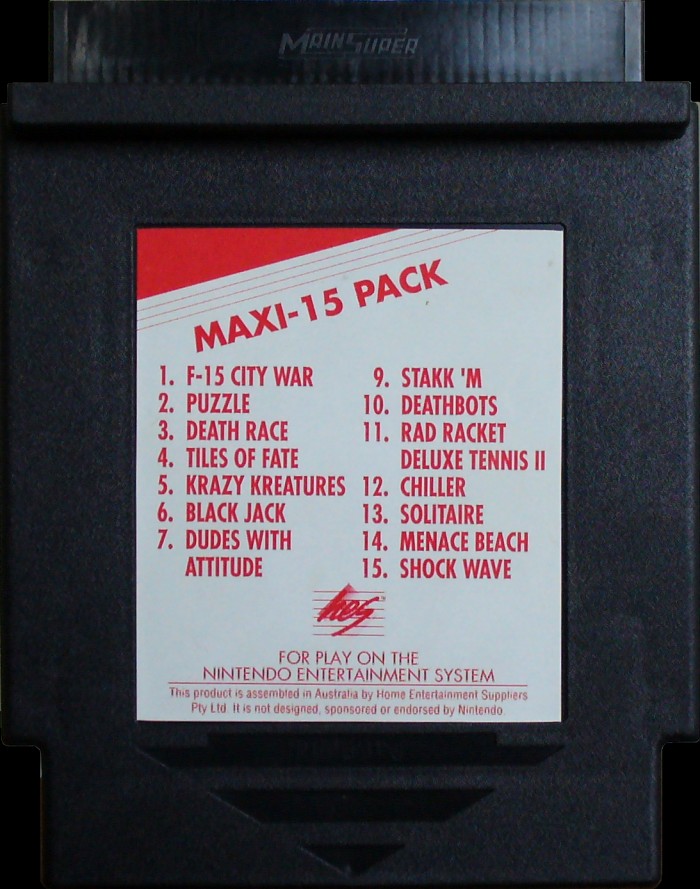

Cart Properties
| Cart Producer | HES |
|---|---|
| Color | Black |
| Form Factor | Pass-Thru |
| Embossed Text | |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

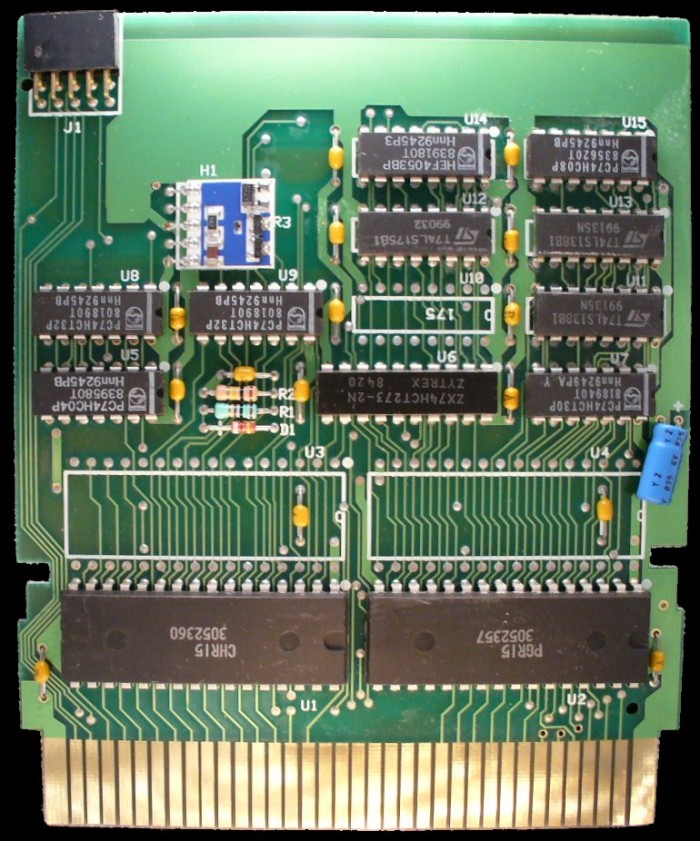

PCB Properties
| Name | HESI-992 |
|---|---|
| PCB Producer | HES |
| Manufacturer | Not Specified |
| Mfg Range | 9249 |
| Est First Run | December 1992 |
| PCB Class | MLT-MAXI15 |
| iNES Mapper | 234 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 4053, 74xx04, 74xx08, 74xx138, 74xx138, 74xx175, 74xx273, 74xx30, 74xx32, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PGR15 | 512 KB | 5C0E2F89 | 1 |
| CHR0 | CHR15 | 512 KB | 00232705 | 1 |
| N/A | ROMs Combined | 1024 KB | 93484CC9 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 CHR | __Unknown | 30523 60 | Mask ROM 512 KB | DIP-32 | |||
| U11 138 | ST Micro | T74LS138B1 | 74-138 Series | DIP-16 | 9135 9 | 9135 | |
| U12 175 | ST Micro | T74LS175B1 | 74-175 Series | DIP-16 | 9032 9 | 9032 | |
| U13 138 | ST Micro | T74LS138B1 | 74-138 Series | DIP-16 | 9135 9 | 9135 | |
| U14 4053 | Phillips | HEF4053BP | 4053 | DIP-16 | 9245 Hnn | 9245 | 839180T |
| U15 08 | Phillips | PC74HC08P | 74-08 Series | DIP-14 | 9245 Hnn | 9245 | 835620T |
| U2 PRG | __Unknown | 30523 57 | Mask ROM 512 KB | DIP-32 | |||
| U5 04 | Phillips | PC74HC04P | 74-04 Series | DIP-14 | 9245 Hnn | 9245 | 839580T |
| U6 273 | Zytrex | ZX74HCT273-2N | 74-273 Series | DIP-20 | 8420 | 8420 | |
| U7 30 | Phillips | PC74HCT30P | 74-30 Series | DIP-14 | 9249 Hnn | 9249 | 818940T |
| U8 32 | Phillips | PC74HCT32P | 74-32 Series | DIP-14 | 9245 Hnn | 9245 | 801890T |
| U9 32 | Phillips | PC74HCT32P | 74-32 Series | DIP-14 | 9245 Hnn | 9245 | 801890T |
