Release Info
| Catalog ID | NES-VQ-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | November 1990 |
| Publisher | Arcadia |
| Developer | Software Creations |
| Players | 1 |
| Peripherals | NES Controller |

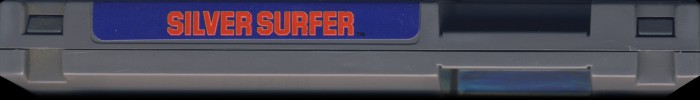

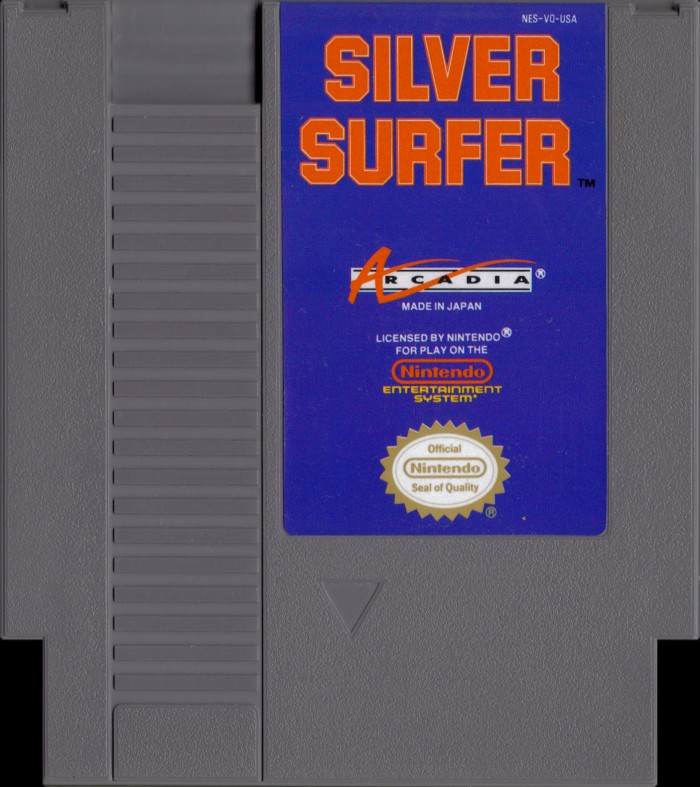

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-VQ-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 27 |

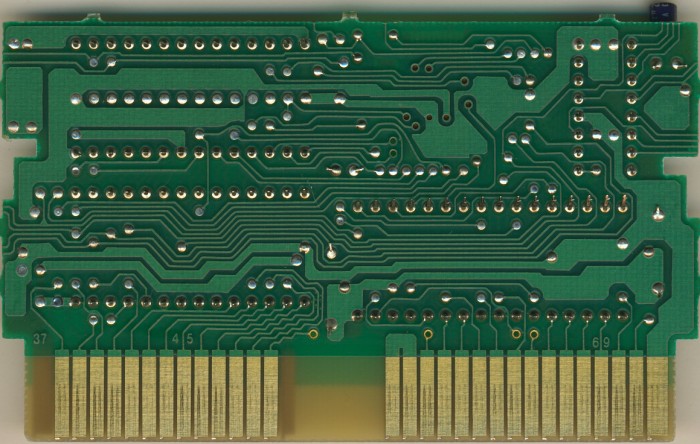

PCB Properties
| Name | NES-TSROM-07 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9041 |
| Est First Run | October 1990 |
| PCB Class | NES-TSROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-VQ-0 PRG | 128 KB | 8C940984 | 1 |
| CHR0 | NES-VQ-0 CHR | 256 KB | 58E3FE8A | 1 |
| N/A | ROMs Combined | 384 KB | BEE1C0D9 | 1 |

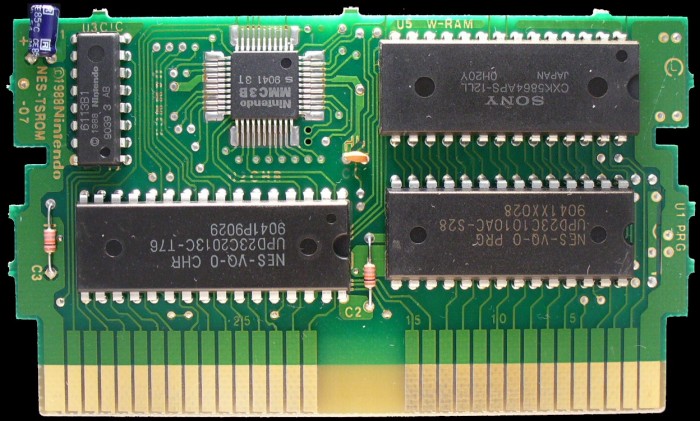

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C1010AC S28 | Mask ROM 128 KB | DIP-28 | 9041 XX028 | 9041 | |
| U2 CHR | NEC | UPD23C2013C T76 | Mask ROM 256 KB | DIP-32 | 9041 P9029 | 9041 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9039 3 AB | 9039 | |
| U4 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9041 3 T | 9041 | |
| U5 W-RAM | Sony | CXK5864APS-12LL | SRAM 8 KB | DIP-28 | 0H 20Y | 9031 |
