Release Info
| Catalog ID | NES-N4-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | December 1990 |
| Publisher | Sammy |
| Developer | NMK |
| Players | 2 |
| Peripherals | NES Controller |

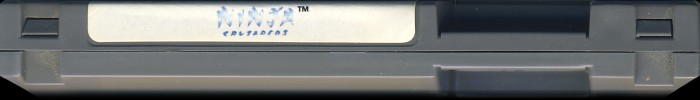

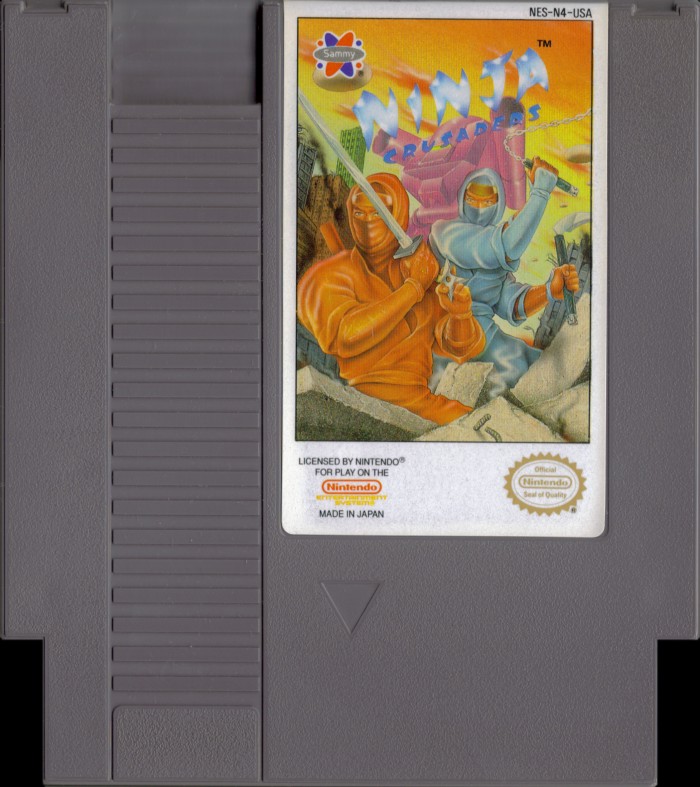

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-N4-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 00 |
PCB Properties
| Name | NES-TGROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9043 |
| Est First Run | October 1990 |
| PCB Class | NES-TGROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-N4-0 PRG | 128 KB | 3D1C4894 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2306 75 | Mask ROM 128 KB | DIP-28 | 9043 E | 9043 | |
| U2 CHR | LSI Logic | LH5160F-10TL | SRAM 8 KB | DIP-28 | 038 D | 9038 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9042 5 AB | 9042 | |
| U4 MMC3 | NEC | MMC3B | Nintendo MMC3 | TQFP-44 | 9019 KX021 | 9019 |
