Release Info
| Catalog ID | NES-4F-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | May 1991 |
| Publisher | Mindscape |
| Developer | Imagineering |
| Players | 1 |
| Peripherals | NES Controller |

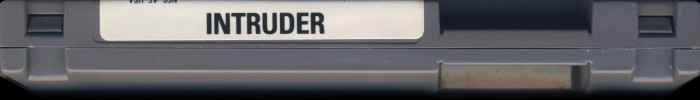

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |

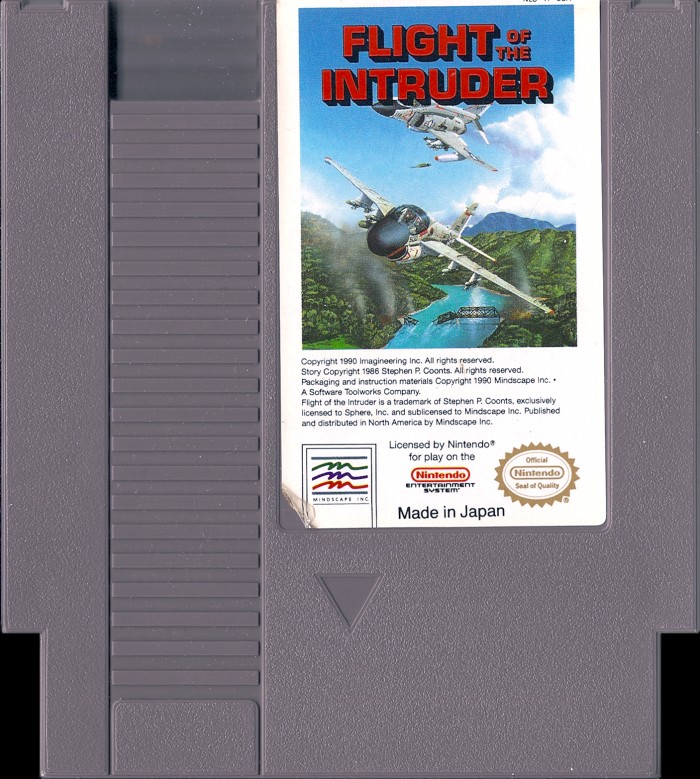

| Front Label ID | NES-4F-USA |
| Seal of Quality | Oval (R) |
| MfgString Present | Yes |
| 2-digit Code | 05 |
PCB Properties
| Name | NES-UNROM-09 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9207 |
| Est First Run | February 1992 |
| PCB Class | NES-UNROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-4F-0 PRG | 128 KB | F92BE7F2 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|
