| Catalog ID | NES-LY-FRA |
|---|---|
| Region | France (PAL-B) |
| Class | Licensed |
| Release Date | 1993 |
| Publisher | Ocean |
| Developer | Eurocom |
| Players | 1 |
| Peripherals | NES Controller |
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-LY-FRA |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code |

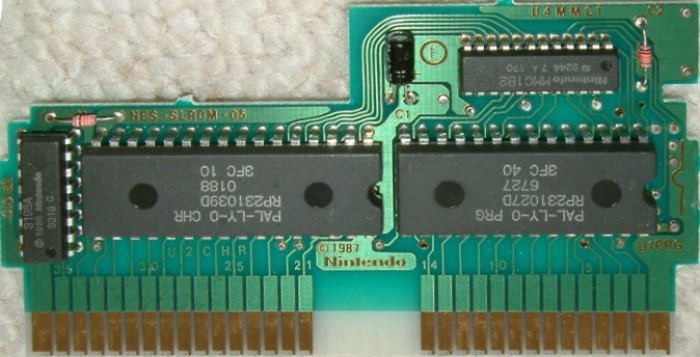

| Name | NES-SLROM-06 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9322 |
| Est First Run | June 1993 |
| PCB Class | NES-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC1B2 |
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-LY-0 PRG | 128 KB | FFDA5D58 | 1 |
| CHR0 | PAL-LY-0 CHR | 128 KB | 2E46EBEE | 2 |
| N/A | ROMs Combined | 256 KB | E043C6A5 | 1 |
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231027D 6727 | Mask ROM 128 KB | DIP-28 | 3FC 40 | 9322 | |
| U2 CHR | Ricoh | RP231039D 0188 | Mask ROM 128 KB | DIP-32 | 3FC 10 | 9322 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9218 C | 9218 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9244 7 A 170 | 9244 |
