| Catalog ID | NES-RN-FRA |
|---|---|
| Region | France (PAL-B) |
| Class | Licensed |
| Release Date | 1992 |
| Publisher | Acclaim |
| Developer | Imagineering |
| Players | 1 |
| Peripherals | NES Controller |
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-RN-FRA |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code |
| Name | NES-TLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9316 |
| Est First Run | April 1993 |
| PCB Class | NES-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | MMC3C |
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-RN-0 PRG | 256 KB | 4E3BC5C2 | 1 |
| CHR0 | PAL-RN-0 CHR | 128 KB | D52B2DCB | 2 |
| N/A | ROMs Combined | 384 KB | 95CE3B58 | 1 |

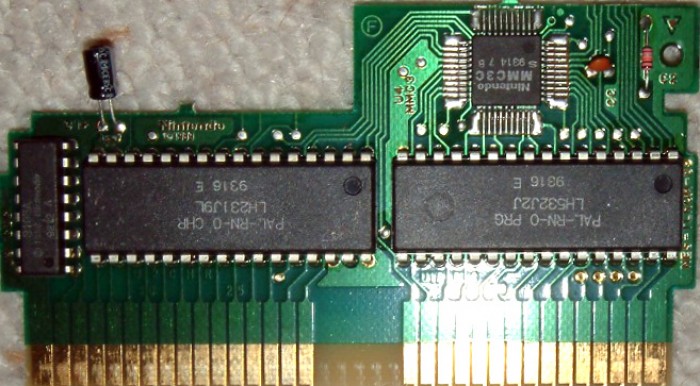

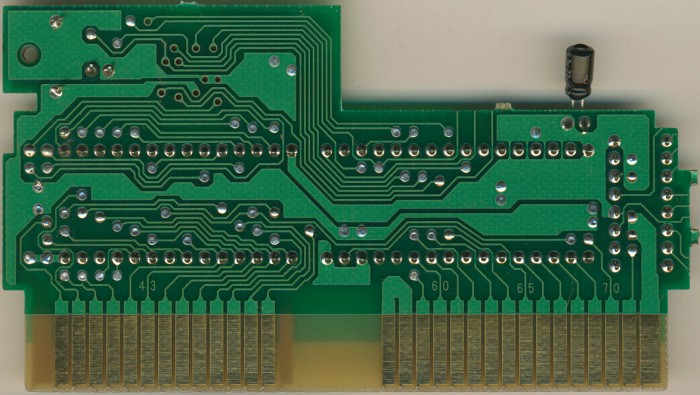

| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH532J 2J | Mask ROM 256 KB | DIP-32 | 9316 E | 9316 | |
| U2 CHR | Sharp | LH231J 9L | Mask ROM 128 KB | DIP-32 | 9316 E | 9316 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9212 A | 9212 | |
| U4 MMC3 | Sharp | MMC3C | Nintendo MMC3 | TQFP-44 | 9314 7 B | 9314 |
