Release Info
| Catalog ID | AVE-MA |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1991 |
| Publisher | AVE |
| Developer | C & E |
| Players | 2 |
| Peripherals | NES Controller |

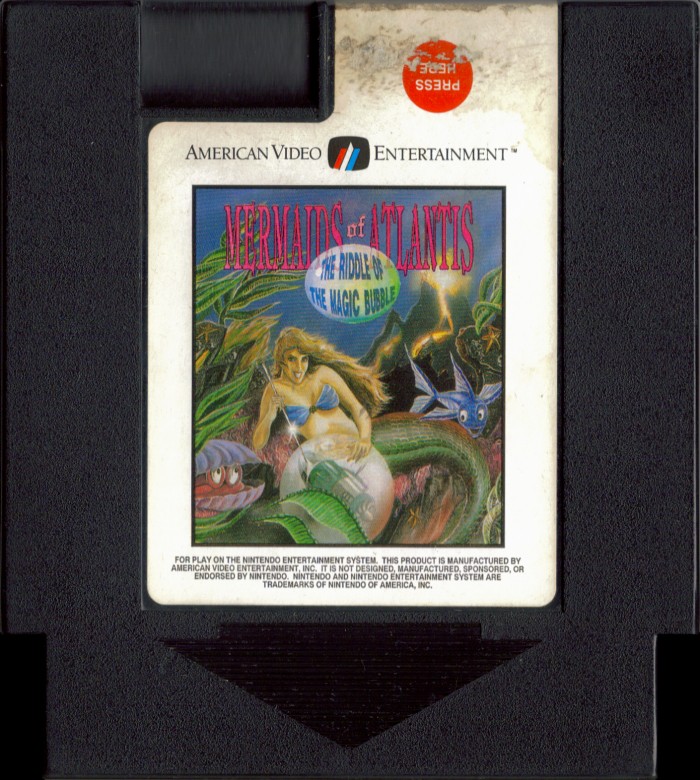

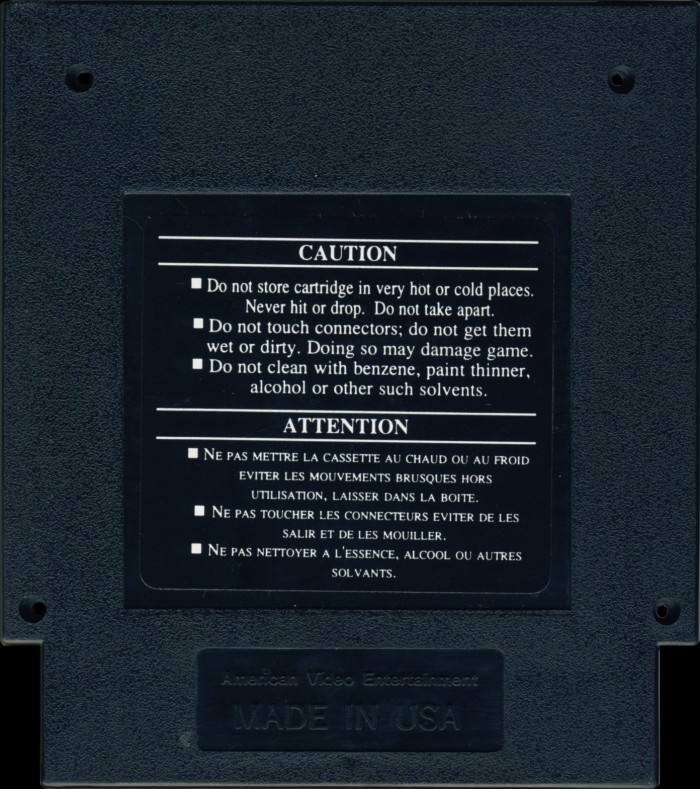

Cart Properties
| Cart Producer | AVE |
|---|---|
| Color | Black |
| Form Factor | Square Corner |
| Embossed Text | American Video Entertainment Made in USA |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

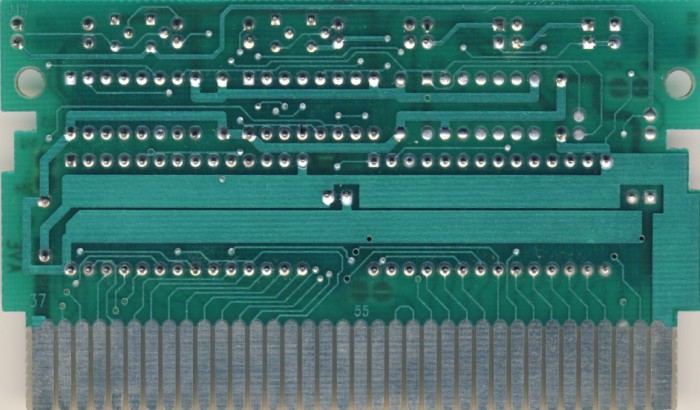

PCB Properties
| Name | NINA-06 |
|---|---|
| PCB Producer | AVE |
| Manufacturer | ACL |
| Mfg Range | 9218 |
| Est First Run | May 1992 |
| PCB Class | AVE-NINA-06 |
| iNES Mapper | 79 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | CIC Stun |
| Hardware | 74xx138, 74xx174 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | 852B-PGM | 64 KB | 460A9CB0 | 2 |
| CHR0 | ED50-CHR | 64 KB | A5591AD5 | 2 |
| N/A | ROMs Combined | 128 KB | F05870D5 | 2 |

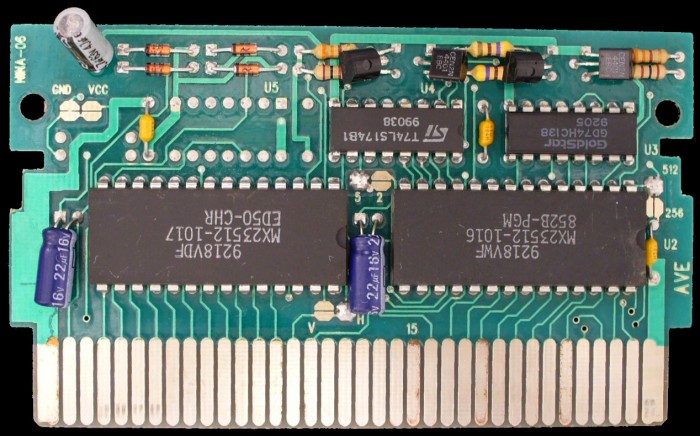

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 | Macronix | MX23512 1017 | Mask ROM 64 KB | DIP-28 | 9218 VDF | 9218 | |
| U2 | Macronix | MX23512 1016 | Mask ROM 64 KB | DIP-28 | 9218 VWF | 9218 | |
| U3 | GoldStar | GD74HC138 | 74-138 Series | DIP-16 | 9205 | 9205 | |
| U4 | ST Micro | T74LS174B1 | 74-174 Series | DIP-16 | 9038 9 | 9038 |
