Release Info
| Catalog ID | NES-NR-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | December 1989 |
| Publisher | Acclaim |
| Developer | Pack-In-Video |
| Players | 1 |
| Peripherals | NES Controller |

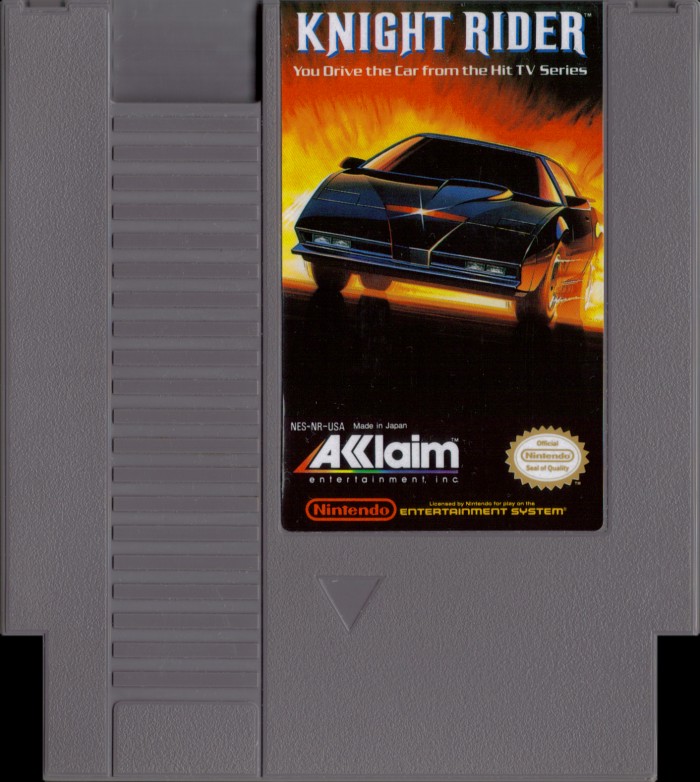

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-NR-USA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 19 |

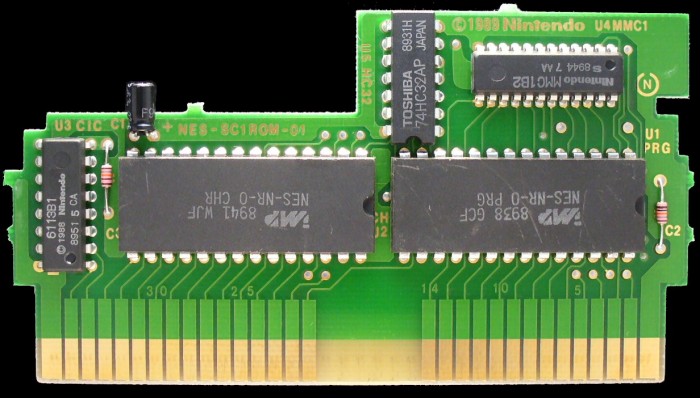

PCB Properties
| Name | NES-SC1ROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8951 |
| Est First Run | December 1989 |
| PCB Class | NES-SC1ROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx32, MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-NR-0 PRG | 64 KB | E5F49166 | 1 |
| CHR0 | NES-NR-0 CHR | 128 KB | 0316C8A3 | 4 |
| N/A | ROMs Combined | 192 KB | EBCFE7C5 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | IMP | IM23512 | Mask ROM 64 KB | DIP-28 | 8938 GCF | 8938 | |
| U2 CHR | IMP | IM231002 | Mask ROM 128 KB | DIP-28 | 8941 WJF | 8941 | |
| U3 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8951 5 CA | 8951 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 8944 7 AA | 8944 | |
| U5 HC32 | Toshiba | 74HC32AP | 74-32 Series | DIP-14 | 8931 H | 8931 |
